Timeline: 3 Months
Discipline: Digital Product Design & UI/UX Design
For: Upped Events – Specializing in event management software
Brief:
My time at Upped Events was focused on designing a Kitchen Display System (KDS) for vendors at events to manage and process their orders. My work focused on taking the existing product, and some product specifications from the COO, to develop a new version of the product to be deployed. Over my time with Upped Events, I designed a KDS with uses for IPad landscape, and use on an IPhone in both portrait and landscape mode. This work included doing a competitive analysis, a feature inventory, and the design of over 200 different screens to outline iPad and iPhone designs.
Problem:
After an event attendee orders an item on their device, the order is sent to the vendor to fulfill. Right now, the screens and processes that the vendor uses to manage the fulfillment of the order are not sufficient.
Context:
All vendor staff will have access to the "Order Management" modules. The screens where a vendor can see and manage orders as they come from customers. It is this process that we are looking to redevelop – from the moment a vendor clicks on the order management system, till they've fulfilled all orders and served their last customer. The focus of this project was on design and vendor experience. We thought through functionality, feature sets, and design. The role ended up including some product management, along with UI/UX design.
Design Requirements:
- Design an order management system for ipad landscape, and iPhone portrait and landscape
- Orders show up as unfulfilled, a staff member claims the order, that staff member completes the order
- Allow for vendors to individually turn on and off claiming capability: For those that don't want to have claiming, incorporate a general claimed function for orders
- Ability to add staff members for claiming
- Ability for a vendor to mark items as ready for pickup
- Once an order is picked up, the ticket can be closed
- Tickets can be searched and refunded
- Hoping for Kanban type design

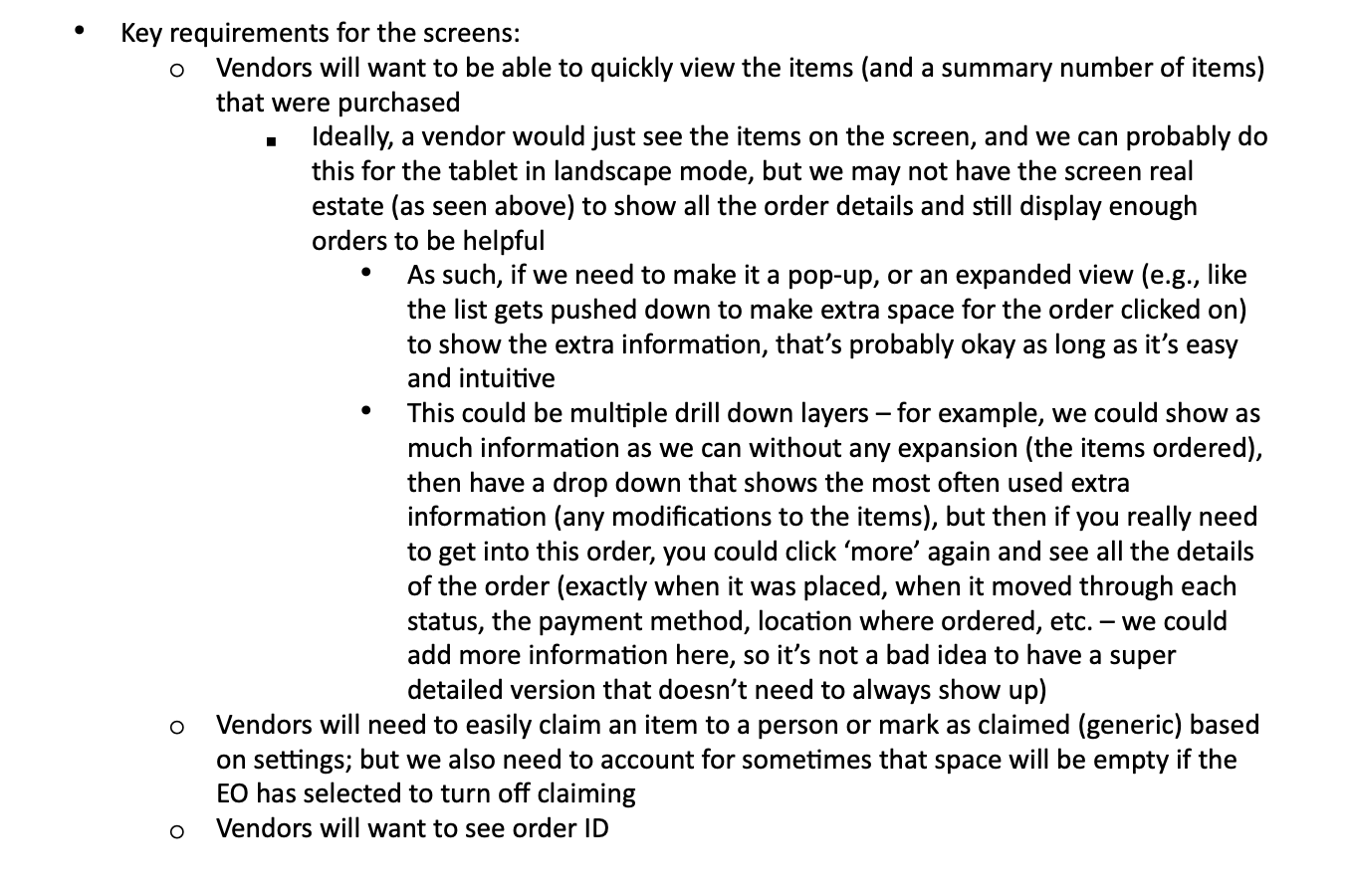

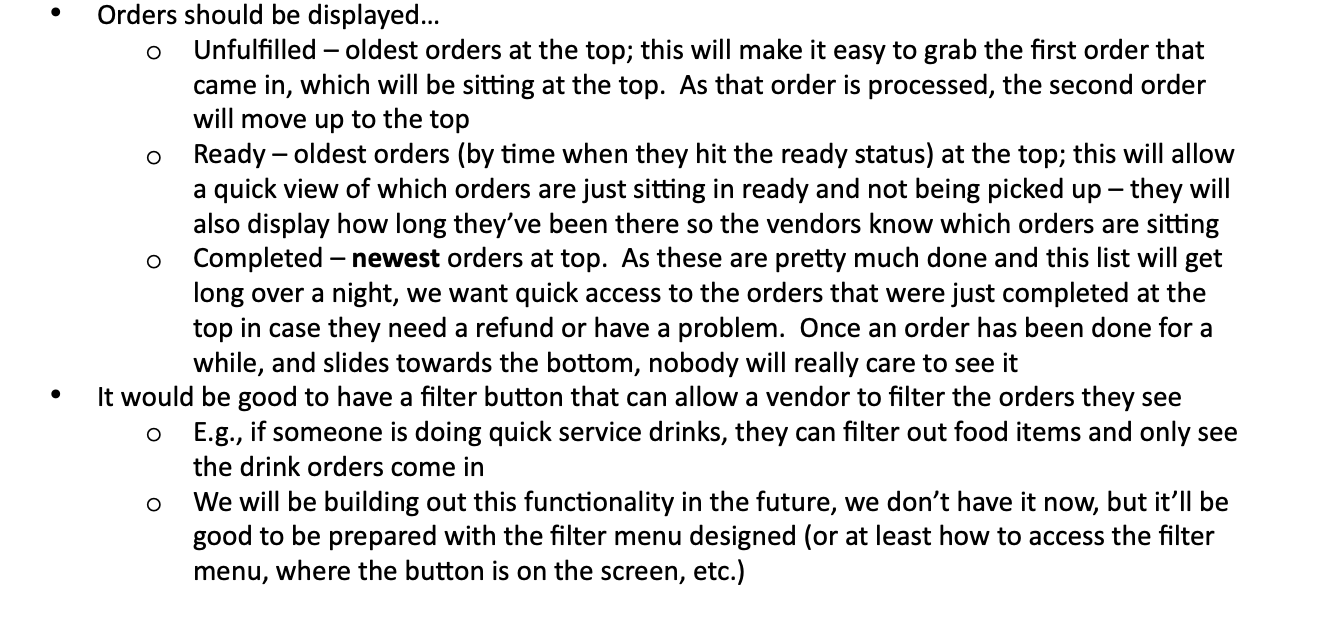

More detailed screen specifications can be found below.
Research: Competitive Analysis
User Flow for Customer and Vendor
Lo-Fi Prototyping
I completed my initial prototypes by building the most basic, and crucial screens. I had scheduled design reviews and I treated each time in between as a development cycle. In total it took 5 design cycles to get from the initial screens above to the final ones below. I set out goals at the start of each cycle and focused on completing them through the cycle. I started each next cycle with revisions from design reviews and user feedback. Since our design goal was to focus on landscape iPad, I focused on those designs first. Once iPad was completely done and approved, I moved on to completing both iPhone design styles using the iPad design systems.
Establishment of a Design System
Below is the design system I created to streamline the design process. The design system was replicated for the iPhone iteration of the software and scaled as necessary. The design system above allows for global components which help to create a consistent design and streamline edits to the prototype when given feedback. The design system also makes it easier for front-end developers to review page styles, and create the necessary CSS styles based on fonts, colors, and spacing.
Final Screen Design: iPad Landscape
Below, some of the final screen designs can be found for each system designed. Upped Events is very excited about the launch of this product, and asked me to not share the final prototypes for this project (which include all screens and features). However, the simplified prototypes below display many of the screens to provide an overview of the final product, and the design work completed.
Final Screen Design: iPhone Portrait and Landscape
